PEM water electrolysis

PEM electrolysis is one of several processes for producing hydrogen from water. The ZBT is conducting research into optimising this technology.

PEM water electrolysers are already being marketed by industry with system outputs ranging from one to several hundred megawatts. However, the advantages of PEM electrolysis, such as high efficiency, high current densities and simple system design, are accompanied by disadvantages such as the necessary use of precious materials and the resulting high investment costs.

To further improve the technology, we are therefore conducting research into materials and components as well as degradation analysis and service life prediction.

PEM water electrolysis (proton exchange membrane) is a process for producing hydrogen through the electrolytic splitting of water. A central component is the proton-conducting membrane, which transports hydrogen ions from the anode to the cathode while electrons flow through an external circuit. At the anode, water is split into oxygen, protons and electrons. At the cathode, protons and electrons react to form hydrogen.

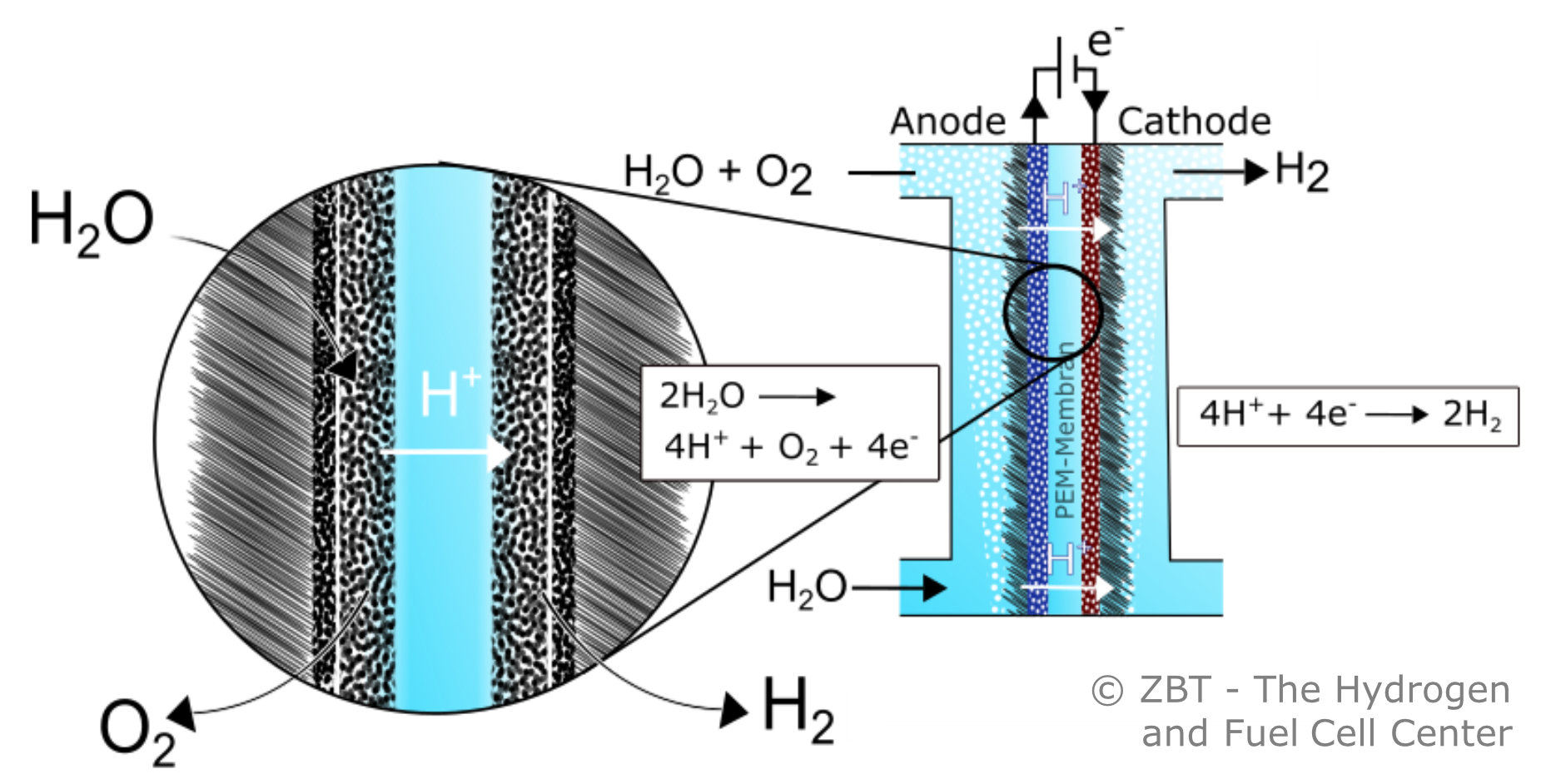

Eine Illustration zum Aufbau einer PEM Elektrolyse-Zelle

Materials and components

The Materials and Components working group in the Electrolysis Department is involved in the development and evaluation of cell components, catalysts and membranes for polymer electrolyte membrane water electrolysis (PEM-WE).

Since iridium catalysts are currently the main material used on the anode side for long-term operation of PEM electrolysers and these are very expensive, it is important to make the best possible use of the material in the coating. Therefore, our work focuses on the development and optimisation of catalyst coatings for the membrane.

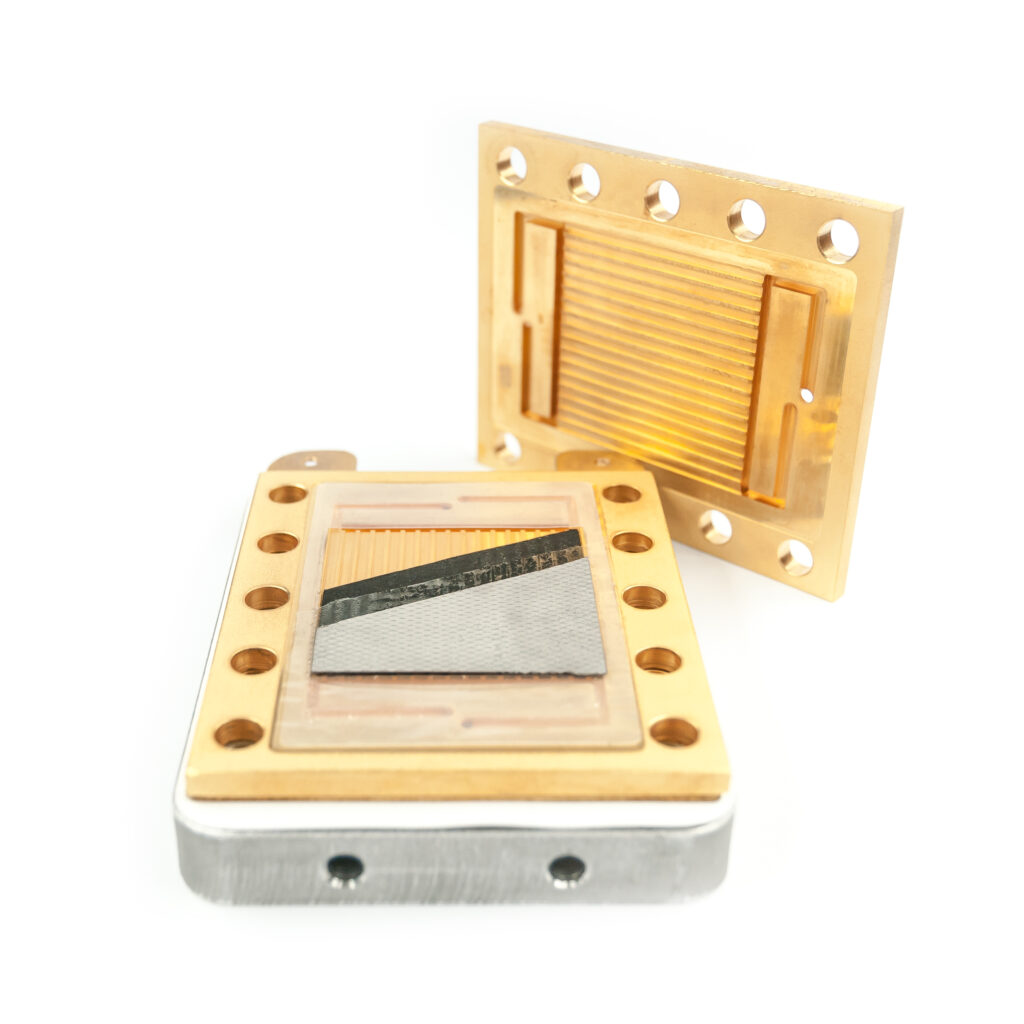

We have a sonotrode and various rotor-stator mixers at our disposal for the production of dispersions. We can coat membranes using an ultrasonic spray process or with a squeegee (direct membrane and decal process). In addition to ex-situ analysis using SEM, XRF and confocal microscopy, we are able to carry out various electrochemical investigations on a laboratory scale up to 25 cm².



Grafisches Element mit weißer Liniengrafik auf blauem Hintergrund

Our portfolio:

  • Manufacture of catalyst-coated membranes or porous transport layers with your material

  • Electrochemical characterisation of catalyst-coated materials in test cells up to 25 cm² according to agreed test protocols

  • Structural analysis of materials (morphology, SEM, optical methods)

  • Advice on material selection and components for PEM-WE cells

Testing and degradation analysis

Safe and predictable operation is crucial for the industrial use of electrolysers. To this end, the group operates test and degradation analysis test benches for PEM electrolysis cells and stacks and is working on the development of methods for in-situ degradation analysis. Our testing capabilities range from small electrolysis cells with a cell area of 5 cm² to test benches for stack prototypes with 500 cm² and 2000 A.


For degradation analysis, the states of the electrolyser and the process system components are continuously monitored and, based on this overall system, state analyses are performed and state predictions are made. We draw on our many years of experience in electrolysis operation and modern machine learning methods. The numerical models are supplemented with classic electrochemical methods such as polarisation curves and impedance spectroscopy.

Our goal is to be able to determine the electrolyser status based on the smallest changes in normal operation.

Zwei Personen schauen auf einen Bildschirm, welcher das Bedienelement eines Teststandes ist.
Grafisches Element mit weißer Liniengrafik auf blauem Hintergrund

Our portfolio:

  • Fully automated test operation of single cells on a 5 cm² and 25 cm² scale

  • Fully automated test operation of short stacks with up to 40 kW at a maximum of 20 V and 2000 A and up to 35 bar in differential or equal pressure operation

  • Development of test protocols

  • Data analysis and modelling

  • Development of system components and sensor technology

  • Development and construction of our own test benches
